GRW1G.DJ
GRW1G.DJ
GRW1G.DJ
NEW

GRW1G.DJ

Product No.:
GRW1G.DJ
Power Supply:
AC/DC 24 V (±10 %)
Temperature Sensor:
PT1000, ±0.15 K @ 0⁰C DIN EN 60751, class A
Accuracy active:
±(50 ppm +3 % of reading), Repeatability ±10 pp, Response time t63 = 60 s
Active Output:
4-20 mA
IP Rating:
IP20
Measuring Range:
0 ppm to 2000 ppm,
LED:
Air Quality LED
You do not have permission to view the prices

Description

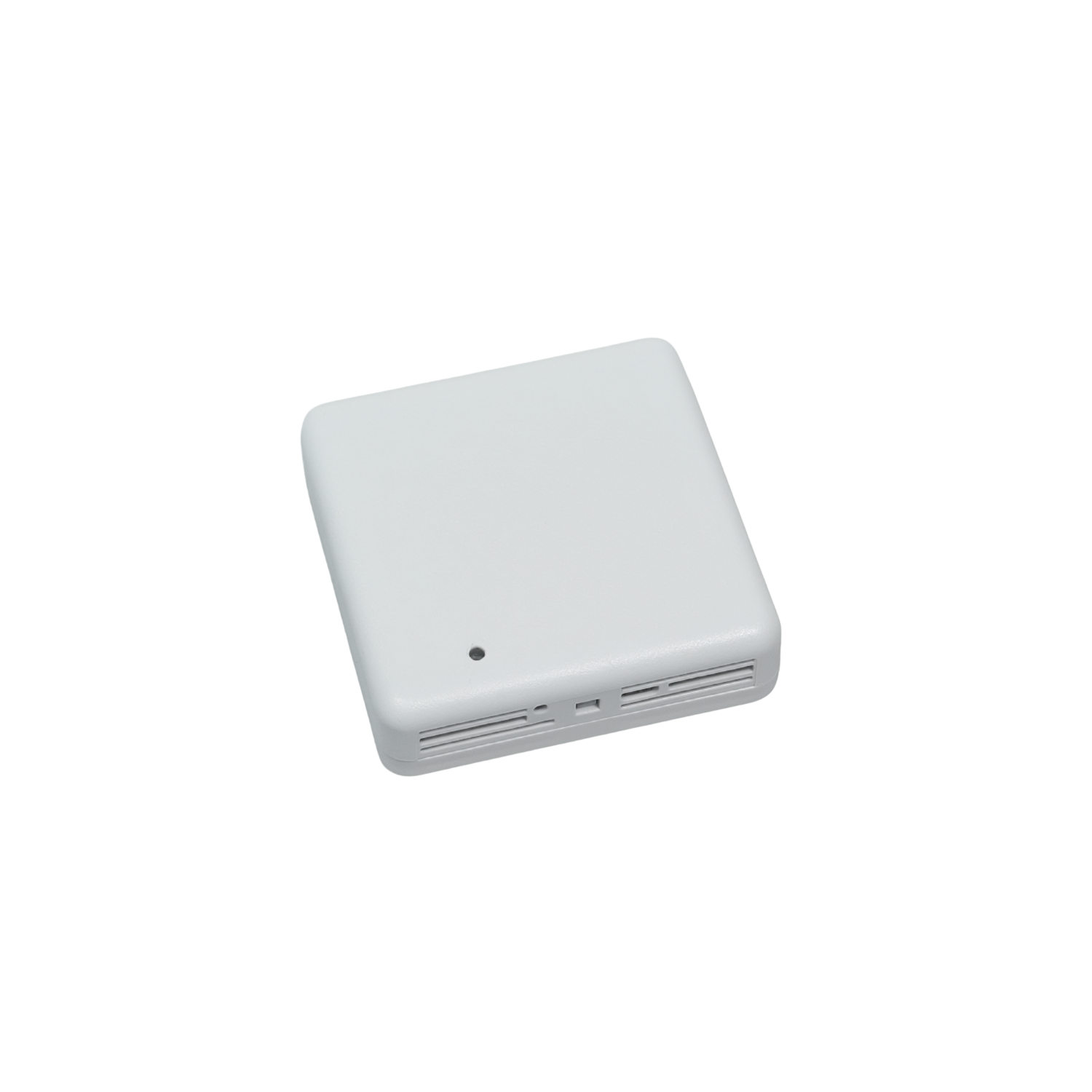

The GRW1-Series (CO2) is designed to measure air quality (CO2) in rooms or areas.
The sensor operates with low voltage power supply.
In accordance with RESET® and WELL Building Standard™.
With Operation LED, optional with ePaper display available.
CO2 sensor output are active, optional with passive temperature output.
Use
Compatible to all common HVAC DDC and Analog Controls systems, with/without Building Automation System.
Used in all common HVAC applications.
Used in Commercial and Industrial Buildings.
Features
Sensor with active output, optional with passive temperature output.
Sensor output 0–10 V or 4–20 mA, optional with passive temperature output.
With Operation LED, optional with ePaper display available.
Reading/parameter settings via NFC technology.
Firmware updates via external USB-C.
Easy to use, install and maintain.
Download
Download Datasheet GR AP PM DS2102en GRW1 CO2 V26_1
