CRW5G.QB

Product No.:

CRW5G.QB

Stock:

pieces

Power Supply:

AC/DC 24 V (±10 %)

Temperature Measuring Range:

0 °C to 50 °C (default) −40 °C to +135 °C via NFC adjustable

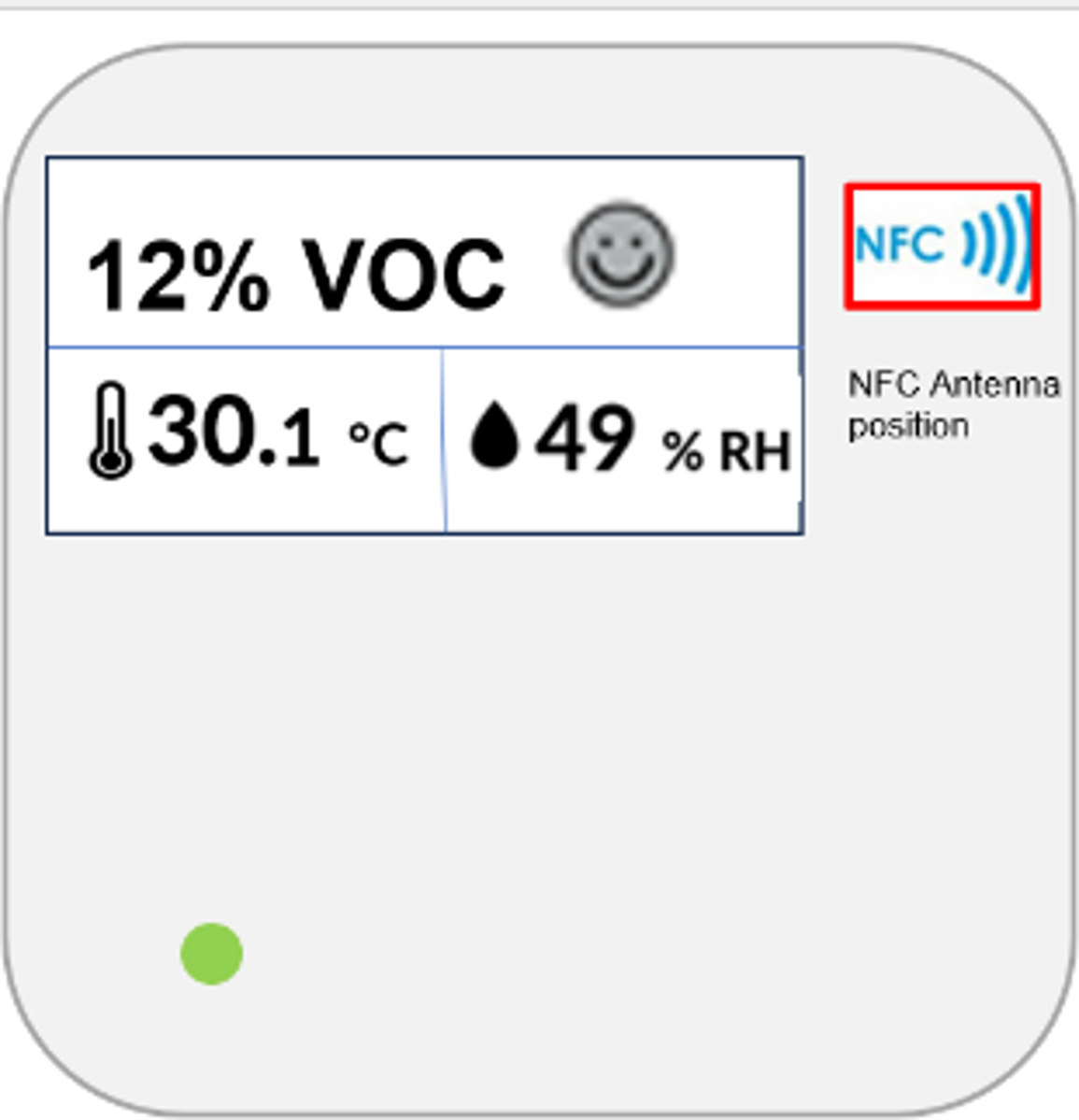

Display:

31 × 60 mm (ePaper)

Active Output:

3 x 0–10 V

IP Rating:

IP20

Temperature Accuracy Active:

±0.2 °C between 0 °C to +50 °C

Humidity Accuracy Active:

±2 %, Full Scale

Humidity Measuring Range / Unit:

rel. humidity (default) 0 to 100 %, absolute humidity 0 to 50 g/m³, dew point −20 to +80 °C, enthalpy 0 to 85kJ/kg, selectable via NFC

LED:

Available

VOC Accurac:

Device-to-Device variation ±15 Index Points (3.3 %) Repeatability ±5 Index Points (1 %) Response time t 63 = 10 s

VOC Measuring Range / Unit:

0 to 500 Index Points (0 % to 100 %)
