TRW2G.FG
TRW2G.FP
TRW2G.FG
NEW

TRW2G.FP

Product No.:
TRW2G.FP
Sensor Type:
NTC10k
Measuring Connection:
2/3/4-wire connection
Accuracy:
±0.25 °C @ 25 °C
IP Rating:
IP20 to IEC60529
Measuring Range:
0 °C~+50 °C
Product Dimensions:
86 mm × 86 mm × 25 mm
Housing:
White ABS
You do not have permission to view the prices

Description

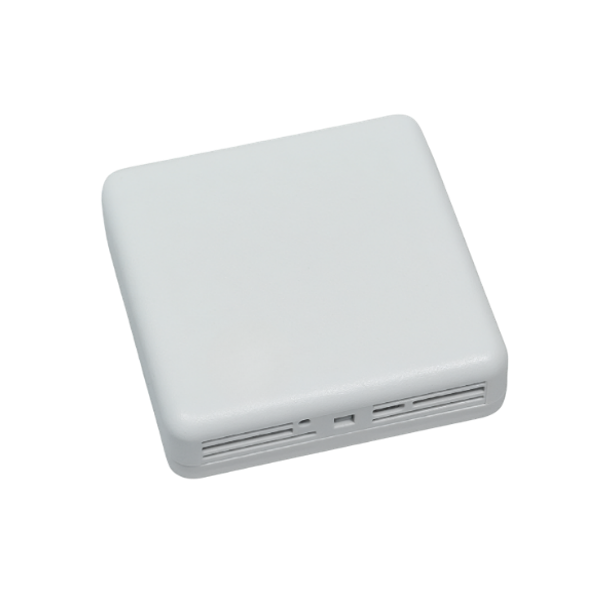

The TRW2-Series (T) is designed to measure temperatures in rooms or areas.
The temperature sensor output is passive.
Sleek, simple design, suitable for most rooms.
Wide measuring range and high accuracy.
Use
Compatible to all common HVAC DDC and Analog Controls systems with/without Building Automation System.
Used in all common HVAC applications.
Used in Commercial and Industrial Buildings.
Features
Sensor with passive output.
Sensor with 2-, 3-, or 4-wire connection.
Sensors with integrated strain relive.
All Sensors with outstanding accuracy.
Easy to use, install and maintain free.
Download
Download Datasheet GR AP PM DS151en TRW2 T V26_1
