Product No.:
TUU1G.FA
Power Supply:
AC/DC 24 V (±10 %)
Accuracy:
±0.2 °C between 0 °C to +50 °C
IP Rating:
IP65 to IEC60529
Measuring Range:
−20 °C to +80 °C (default), −40 °C to +135 °C via NFC adjustable
Cable length:
2 m
Output:
0–10 V
Sensor Shape:
Sensor Pocket Ø6 mm × 50 mm
You do not have permission to view the prices

Description

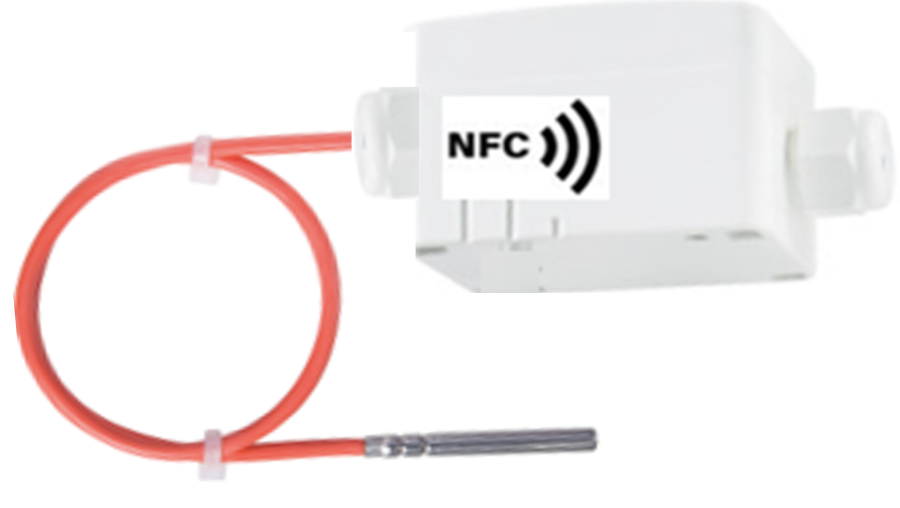

The TUU1-Series (T) is designed to measure temperature for universal use.
The sensor operates with low voltage power supply.
In accordance with RESET® and WELL Building Standard™.
Cover/buttom housing connected with magnets and two screws.
The temperature sensor output is active.
Use
Compatible to all common HVAC DDC and Analog Controls systems, with/without Building Automation System.
Used in all common HVAC applications.
Used in Commercial and Industrial Buildings.
Features
Sensor with active output.
Sensor outputs 0–10 V or 4–20 mA.
Different immersion lengths for all common air duct and water pipe sizes.
Reading/Parameter settings via NFC technology.
Professional and practical product design.
Cover/bottom housing connected with magnets and screws.
Firmware updates via service connector.
Easy to use, install and maintain.
